Notification Service — Fault-tolerant service on microservices

Goals of the Notification Service

• Asynchronous message processing

• Retry mechanism in case of failures

• Deduplication to avoid re-notifying

• Monitoring & Alerts on delivery failure

• Support multiple channels: Email, SMS, In-App

• Decouple producer from consumer

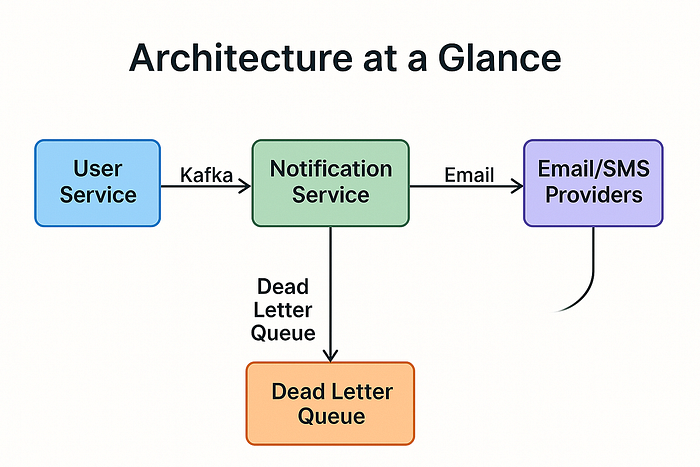

Architecture at a Glance

User Service --> Kafka Topic --> Notification Service --> Email/SMS Providers | Dead Letter Queue

Tech Stack Used in this application

Java + Spring Boot for the microservice

Kafka for event streaming

Redis for caching and deduplication

MySQL for audit logs

Prometheus + Grafana for observability

Step 1: Event-Driven Notification

Instead of direct API calls, we used Kafka to send notification events:

{ "userId": "u123", "channel": "EMAIL", "message": "Welcome to our platform!", "retryCount": 0, "notificationId": "uuid-456" }

This message lands in the notification-events topic and is consumed asynchronously.

Step 2: Retry with Backoff Strategy

Failures can happen due to provider issues (e.g., SendGrid down). So, we implemented a retry logic with exponential backoff.

@KafkaListener(topics = "notification-events") public void consume(NotificationEvent event) { try { sendNotification(event); } catch (Exception ex) { if (event.getRetryCount() < MAX_RETRY) { scheduleRetry(event); // re-publish with delay } else { sendToDLQ(event); // Dead Letter Queue } } }

Step 3: Avoid Duplicate Notifications

We store a hash of the notification in Redis with TTL to avoid re-sending the same notification.

String hashKey = generateHash(notification); if (redisTemplate.hasKey(hashKey)) return; sendNotification(notification); redisTemplate.opsForValue().set(hashKey, "sent", 1, TimeUnit.HOURS);

Step 4: Observability

We integrated Prometheus + Grafana to track metrics:

• Number of notifications sent

• Retry count

• Failure rate per provider

• DLQ size

Counter notificationSent = Counter.build() .name("notifications_sent_total") .help("Total number of notifications sent") .register(); notificationSent.inc();

Step 5: Testing Fault Tolerance

We simulated outages using:

Shutting down email provider

Delaying Kafka messages

High throughput spikes

The system gracefully recovered using retry + DLQ monitoring.

What I Learned

• Don't treat notifications as fire-and-forget

• Retry logic is not enough — you need observability

• Use idempotency to avoid chaos during retries

• DLQs are your friend — never silently drop failed messages

A fault-tolerant notification service is not about over-engineering; it's about anticipating failures. With Kafka, retry mechanisms, Redis deduplication, and monitoring in place, your system can keep users in the loop — even when things go wrong behind the scenes.

Note — — — — — — — — —

Always think like a failure will happen. Then build like it won't hurt.
